Proximity Sensors and Bluetooth in Windows Phone 8

During this video, Andy and I cover local communication with Windows Phone 8.

After a Bluetooth overview, we show you how to use Bluetooth from an application, Near Field Communications (NFC), bump-to-connect, as well as the proximity API functionality.

Be sure to check out previous Windows Phone 8 Jump Start videos from Rob and Andy:

– Rob

Network Communications in Windows Phone 8

During this video, Andy and I show developers how to leverage patterns for the asynchronous use of networking APIs in Windows Phone 8.

Topics include WebClient, HttpWebRequest, Listener Sockets, Web Services, OData V3, Data Compression support, Simulation Dashboard, Data Sense and apps. Storing data in Skydrive, encryption and authentication are also covered. Accessing services running on localhost from the emulator is demystified.

Be sure to check out previous Windows Phone 8 Jump Start videos from Rob and Andy:

– Rob

Consumerization of IT Collides with MEAP: Android > Cloud

In my ‘Consumerization of IT Collides with MEAP’ article last week, I described how to connect Android smartphones and tablets to Microsoft’s On-Premise infrastructure.

In this week’s scenario, I’ll use the picture below to illustrate how Android utilizes many of Gartner’s Mobile Enterprise Application Platform Critical Capabilities to connect to Microsoft’s Cloud services in Azure:


As you can see from the picture above:

  1. For the Management Tools Critical Capability, there is no Cloud-based device management solution, policy-enforcement, or software distribution solution from Microsoft for Android. As I mentioned in last week’s post, consumer software distribution comes from the Android Market and the enterprise equivalent is facilitated via internal web servers and user-clickable URLs. Since Android is a wide-open system, competing markets and app stores are on the rise from Amazon and others.
  2. For both the Client and Server Integrated Development Environment (IDE) and Multichannel Tool Critical Capability, Android uses Visual Studio. Endpoint development consists of HTML5, ECMAScript 5, and CSS3 delivered by ASP.NET via Web Roles. WCF REST + JSON Web services can also be created and consumed via Ajax calls from the browser. On the Cloud side of things, the Windows Azure SDK plugs into Visual Studio and provides Android developers with everything they need to build Cloud applications. It includes a Cloud emulator to simulate all aspects of Windows Azure and AppFabric on their development computer. In scenarios where native development is required by the customers, the Windows Azure Toolkit for Android can be used to allow Java via Eclipse to securely communicate with the Microsoft cloud.
  3. For the cross-platform Application Client Runtime Critical Capability, Android uses the WebKit browser called Chrome to provide HTML5 + CSS3 + ECMAScript5 capabilities. Offline storage is important to keep potentially disconnected Android smartphones and tablets working and this is facilitated by Web Storage which is accessible via JavaScript.
  4. For the Security Critical Capability, Android 3.0 and higher provides hardware encryption based on the user’s device passcode for data-at-rest. Data-in-transit is secured via SSL and VPN. LDAP API support allows it to access corporate directory services. Auth in the Microsoft cloud is handled via the Windows Azure AppFabric Access Control Service (ACS).
  5. For the Enterprise Application Integration Tools Critical Capability, Android can reach out to servers directly via Web Services or indirectly through the Cloud via the Windows Azure AppFabric Service Bus to connect to other enterprise packages.
  6. The Multichannel Server Critical Capability to support any open protocol is handled automatically by Windows Azure. Cross-Platform wire protocols riding on top of HTTP are exposed by Windows Communication Foundation (WCF) and include SOAP, REST and Atompub. Cross-Platform data serialization is also provided by WCF including XML, JSON, and OData. These Multichannel capabilities support thick clients making web service calls as well as thin web clients making Ajax calls. Distributed caching to dramatically boost the performance of any client is provided by Windows Azure AppFabric Caching.
  7. As you might imagine, the Hosting Critical Capability is handled by Windows Azure. Beyond providing the most complete solution of any Cloud provider, Windows Azure Connect provides an IPSec-protected connection with your On-Premises network and SQL Azure Data Sync can be used to move data between SQL Server and SQL Azure. This gives you the Hybrid Cloud solution you might be looking for.
  8. For the Packaged Mobile Apps or Components Critical Capability, Android runs cross-platform mobile apps including Skype, Bing, MSN, Tag, Hotmail, and of course the critical ActiveSync component that makes push emails, contacts, calendars, and device management policies possible.

Samsung-Galaxy-Nexus-UK

While Android 3.0 and higher meets many of Gartner’s Critical Capabilities, it doesn’t fare very well when it comes to cloud-based device management.  While other mobile device platforms also come up short in this department, I’m sure this will change in the coming year.  The tidal wave of CoIT means that device management in the future will look very different from how it did 5 years ago.  Expect a clear separation between corporate apps/data and personal apps/data to be managed.

Sharing my knowledge and helping others never stops, so connect with me on my blog at http://robtiffany.com , follow me on Twitter at https://twitter.com/RobTiffany and on LinkedIn at https://www.linkedin.com/in/robtiffany

Sign Up for my Newsletter and get a FREE Chapter of “Mobile Strategies for Business!”

[mc4wp_form id=”5975″]



Consumerization of IT Collides with MEAP: Android > On-Premises

In my last ‘Consumerization of IT Collides with MEAP’ article, I described how to connect iPhones and iPads to Microsoft’s Cloud servers in Azure.

In this week’s scenario, I’ll use the picture below to illustrate how Android devices can utilize many of Gartner’s Critical Capabilities to connect to Microsoft’s On-Premise infrastructure:


As you can see from the picture above:

  1. For the Management Tools Critical Capability, Android uses Microsoft Exchange for On-Premise policy enforcement via Exchange ActiveSync (EAS) but has no private software distribution equivalent to System Center Configuration Manager 2007 from Microsoft today. Instead, in-house apps are hosted and APKs distributed via a web server over wireless by having a user click on a URL or through a variety of app stores. In the future, System Center Configuration Manager 2012 will be able to better manage Android devices.
  2. For both the Client and Server Integrated Development Environment (IDE) and Multichannel Tool Critical Capability, Android uses Visual Studio. While the Server/EAI development functionality is the same as every other platform, endpoint development will consist of HTML5, ECMAScript 5, and CSS3 delivered by ASP.NET. WCF REST + JSON Web services can also be created and consumed via Ajax calls from the browser.
  3. For the cross-platform Application Client Runtime Critical Capability, we will rely on Android’s WebKit browser to provide HTML5 + CSS3 + ECMAScript5 capabilities. Offline storage is important to keep potentially disconnected Android working and this is facilitated by Web Storage which is accessible via JavaScript.
  4. For the Security Critical Capability, Android 3.0 and higher provides hardware encryption based on the user’s device passcode for data-at-rest. Data-in-transit is secured via SSL and VPN. LDAP API support allows it to access corporate directory services.
  5. For the Enterprise Application Integration Tools Critical Capability, Android can reach out to servers directly via Web Services or indirectly via SQL Server (JDBC) or BizTalk using SSIS/Adapters to connect to other enterprise packages.
  6. The Multichannel Server Critical Capability to support any open protocol directly, via Reverse Proxy, or VPN is facilitated by ISA/TMG/UAG/IIS. Cross-Platform wire protocols riding on top of HTTP are exposed by Windows Communication Foundation (WCF) and include SOAP, REST and Atompub. Cross-Platform data serialization is also provided by WCF including XML, JSON, and OData. These Multichannel capabilities support thick clients making web service calls as well as thin web clients making Ajax calls. Distributed caching to dramatically boost the performance of any client is provided by Windows Server AppFabric Caching.
  7. While the Hosting Critical Capability may not be as relevant in an on-premises scenario, Windows Azure Connect provides an IPSec-protected connection to the Cloud and SQL Azure Data Sync can be used to move data between SQL Server and SQL Azure.
  8. For the Packaged Mobile Apps or Components Critical Capability, Android runs cross-platform mobile apps including SkypeBing, MSNTag, Hotmail, and of course the critical ActiveSync component that makes push emails, contacts, calendars, and device management policies possible.

Newer versions of Android (3.x/4.0) are beginning to meet more of Gartner’s Critical Capabilities. It’s really improved in the last year in areas of encryption, but device fragmentation makes this improvement uneven.  The app story is still the ‘Wild West’ since the Android Market is an un-vetted free-for-all. This big ‘red flag’ has given rise to curated app stores like the one from Amazon.  As you can see from the picture, the big gap is with the client application runtime critical capability. Native development via Java/Eclipse is where Google wants to steer you and Microsoft doesn’t make native tools, runtimes or languages for this platform. You can definitely perform your own due diligence on Mono for Android from our friend Miguel de Icaza and his colleagues in order to reuse your existing .NET and C# skills. From a Microsoft perspective though, you’re definitely looking at HTML5 delivered via ASP.NET.

Next week, I’ll cover how Android connects to the Cloud.

Sharing my knowledge and helping others never stops, so connect with me on my blog at http://robtiffany.com , follow me on Twitter at https://twitter.com/RobTiffany and on LinkedIn at https://www.linkedin.com/in/robtiffany

Sign Up for my Newsletter and get a FREE Chapter of “Mobile Strategies for Business!”

[mc4wp_form id=”5975″]



Consumerization of IT Collides with MEAP: iPhone + iPad > Cloud

In my ‘Consumerization of IT Collides with MEAP’ article last week, I described how to connect iPhones and iPads to Microsoft’s On-Premise infrastructure.

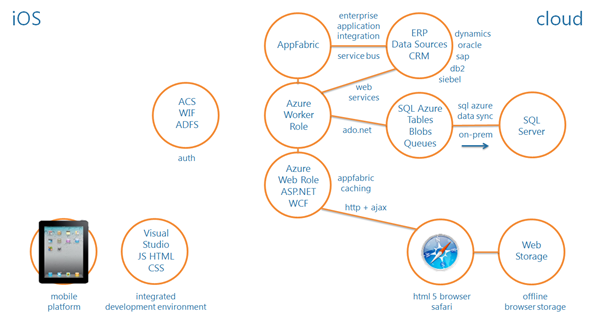

In this week’s scenario, I’ll use the picture below to illustrate how iOS utilizes many of Gartner’s Mobile Enterprise Application Platform Critical Capabilities to connect to Microsoft’s Cloud services in Azure:


As you can see from the picture above:

  1. For the Management Tools Critical Capability, there is no Cloud-based device management solution, policy-enforcement, or software distribution solution from Microsoft for iOS.  As I mentioned in last week’s post, consumer software distribution comes from the App Store and the enterprise equivalent is facilitated via internal web servers and user-clickable URLs.
  2. For both the Client and Server Integrated Development Environment (IDE) and Multichannel Tool Critical Capability, iOS uses Visual Studio.  Endpoint development consists of HTML5, ECMAScript 5, and CSS3 delivered by ASP.NET via Web Roles.  WCF REST + JSON Web services can also be created and consumed via Ajax calls from the browser.  On the Cloud side of things, the Windows Azure SDK plugs into Visual Studio and provides iOS developers with everything they need to build Cloud applications. It includes a Cloud emulator to simulate all aspects of Windows Azure and AppFabric on their development computer. In scenarios where native development is required by the customers, the Windows Azure Toolkit for iOS can be used to allow XCode/Objective-C to securely communicate with the Microsoft cloud.
  3. For the cross-platform Application Client Runtime Critical Capability, iOS uses the WebKit browser called Safari to provide HTML5 + CSS3 + ECMAScript5 capabilities. Offline storage is important to keep potentially disconnected iPhones and iPads working and this is facilitated by Web Storage which is accessible via JavaScript.
  4. For the Security Critical Capability, iOS provides AES 256 hardware encryption as well as Data Protection based on the user’s device passcode for data-at-rest. Data-in-transit is secured via SSL, VPN, and 802.1X.  Auth in the Microsoft cloud is handled via the Windows Azure AppFabric Access Control Service (ACS).
  5. For the Enterprise Application Integration Tools Critical Capability, iOS can reach out to servers directly via Web Services or indirectly through the Cloud via the Windows Azure AppFabric Service Bus to connect to other enterprise packages.
  6. The Multichannel Server Critical Capability to support any open protocol is handled automatically by Windows Azure. Cross-Platform wire protocols riding on top of HTTP are exposed by Windows Communication Foundation (WCF) and include SOAP, REST and Atompub. Cross-Platform data serialization is also provided by WCF including XML, JSON, and OData. These Multichannel capabilities support thick clients making web service calls as well as thin web clients making Ajax calls. Distributed caching to dramatically boost the performance of any client is provided by Windows Azure AppFabric Caching.
  7. As you might imagine, the Hosting Critical Capability is handled by Windows Azure. Beyond providing the most complete solution of any Cloud provider, Windows Azure Connect provides an IPSec-protected connection with your On-Premises network and SQL Azure Data Sync can be used to move data between SQL Server and SQL Azure. This gives you the Hybrid Cloud solution you might be looking for.
  8. For the Packaged Mobile Apps or Components Critical Capability, iOS runs cross-platform mobile apps including OneNote, Bing, Tag, and of course the critical ActiveSync component that makes push emails, contacts, calendars, and device management policies possible.

While iOS meets many of Gartner’s Critical Capabilities, it doesn’t fare very well when it comes to cloud-based device management.  That being said, this is not a strong area for many mobile endpoints at this stage of the game.

Next week, I’ll cover how Android connects to an On-Premises Microsoft infrastructure.

Sharing my knowledge and helping others never stops, so connect with me on my blog at http://robtiffany.com , follow me on Twitter at https://twitter.com/RobTiffany and on LinkedIn at https://www.linkedin.com/in/robtiffany

Sign Up for my Newsletter and get a FREE Chapter of “Mobile Strategies for Business!”

[mc4wp_form id=”5975″]



Consumerization of IT Collides with MEAP: iPhone + iPad > On-Premises

In my last ‘Consumerization of IT Collides with MEAP’ article, I described how to connect a Windows Phone device to Microsoft’s Cloud servers in Azure.

By now you’re probably thinking, “It’s easy to talk about Microsoft endpoints talking to Microsoft servers.” So in this week’s scenario, I’ll use the picture below to illustrate how iOS devices like the iPhone and iPad can utilize many of Gartner’s Critical Capabilities to connect to Microsoft’s On-Premise infrastructure:


As you can see from the picture above:

  1. For the Management Tools Critical Capability, iOS uses Microsoft Exchange for On-Premise policy enforcement via Exchange ActiveSync (EAS) but has no private software distribution equivalent to System Center Configuration Manager 2007 from Microsoft today. Instead, in-house apps are hosted and distributed via a web server over wireless by having a user click on a URL.  In the future, System Center Configuration Manager 2012 will be able to better manage iOS devices.
  2. For both the Client and Server Integrated Development Environment (IDE) and Multichannel Tool Critical Capability, iOS uses Visual Studio. While the Server/EAI development functionality is the same as every other platform, endpoint development will consist of HTML5, ECMAScript 5, and CSS3 delivered by ASP.NET.  WCF REST + JSON Web services can also be created and consumed via Ajax calls from the browser.
  3. For the cross-platform Application Client Runtime Critical Capability, we will rely on iOS’s WebKit browser called Safari to provide HTML5 + CSS3 + ECMAScript5 capabilities. Offline storage is important to keep potentially disconnected iPhones and iPads working and this is facilitated by Web Storage which is accessible via JavaScript.
  4. For the Security Critical Capability, iOS provides AES 256 hardware encryption as well as Data Protection based on the user’s device passcode for data-at-rest. Data-in-transit is secured via SSL, VPN, and 802.1X.  Built-in LDAP support allows it to access corporate directory services.
  5. For the Enterprise Application Integration Tools Critical Capability, iOS can reach out to servers directly via Web Services or indirectly via SQL Server or BizTalk using SSIS/Adapters to connect to other enterprise packages.
  6. The Multichannel Server Critical Capability to support any open protocol directly, via Reverse Proxy, or VPN is facilitated by ISA/TMG/UAG/IIS. Crosss-Platform wire protocols riding on top of HTTP are exposed by Windows Communication Foundation (WCF) and include SOAP, REST and Atompub. Cross-Platform data serialization is also provided by WCF including XML, JSON, and OData. These Multichannel capabilities support thick clients making web service calls as well as thin web clients making Ajax calls. Distributed caching to dramatically boost the performance of any client is provided by Windows Server AppFabric Caching.
  7. While the Hosting Critical Capability may not be as relevant in an on-premises scenario, Windows Azure Connect provides an IPSec-protected connection to the Cloud and SQL Azure Data Sync can be used to move data between SQL Server and SQL Azure.
  8. For the Packaged Mobile Apps or Components Critical Capability, iOS runs cross-platform mobile apps including OneNote, Bing, Tag, and of course the critical ActiveSync component that makes push emails, contacts, calendars, and device management policies possible.

As you can see, iOS meets many of Gartner’s Critical Capabilities.  It’s really improved over the years in areas of security and device management.  As you can see from the picture, the big gap is with the client application runtime critical capability.  Native development via Xcode/Objective-C is where Apple wants to steer you and Microsoft doesn’t make native tools, runtimes or languages for this platform.  You can certainly kick the tires and perform your own due diligence on MonoTouch from our friend Miguel de Icaza and his colleagues in order to reuse your existing .NET and C# skills.  From a Microsoft perspective though, you’re definitely looking at HTML5 delivered via ASP.NET.

Next week, I’ll cover how iOS connects to the Cloud.

Sharing my knowledge and helping others never stops, so connect with me on my blog at http://robtiffany.com , follow me on Twitter at https://twitter.com/RobTiffany and on LinkedIn at https://www.linkedin.com/in/robtiffany

Sign Up for my Newsletter and get a FREE Chapter of “Mobile Strategies for Business!”

[mc4wp_form id=”5975″]



Sync Framework v4 is now Open Source, and ready to Connect any Device to SQL Server and SQL Azure

Sync

Microsoft has brought the power to synchronize data with either SQL Server on-premise or SQL Azure in the cloud to the world of mobility.

The profound effects of the Consumerization of IT (CoIT) is blurring the lines between consumers and the enterprise.  The fact that virtually every type of mobile device is now a candidate to make employees productive means that cross-platform, enabling technologies are a must. If you’ve ever synched the music on your iPhone with iTunes, the calendar on your Android device with Gmail, or the Outlook email on your Windows Phone with Exchange, then you understand the importance of sync.  In my experience architecting and building enterprise mobile apps for the world’s largest organizations over the last decade, data sync has always been a critical ingredient.

The new Sync Framework Toolkit found on MSDN builds on the existing Sync Framework 2.1’s ability to create disconnected applications, making it easier to expose data for synchronization to apps running on any client platform.  Where Sync Framework 2.1 required clients to be based on Windows, this free toolkit allows other Microsoft platforms to be used for offline clients such as Silverlight, Windows Phone 7, Windows Mobile, Windows Embedded Handheld, and new Windows Slates.   Additionally, non-Microsoft platforms such as iPhones, iPads, Android phones and tablets, Blackberries and browsers supporting HTML5 are all first-class sync citizens.  The secret is that we no longer require the installation of the Sync Framework runtime on client devices.  When coupled with use of an open protocol like OData for data transport, no platform or programming language is prevented from synchronizing data with our on-premise and cloud databases.  When the data arrives on your device, you can serialize it as JSON, or insert it into SQL Server Compact or SQLite depending on your platform preferences.

The Sync Framework Toolkit provides all the features enabled by theSync Framework 4.0 October 2010 CTP.  We are releasing the toolkit as source code samples on MSDN with the source code utilizing Sync Framework 2.1.  Source code provides the flexibility to customize or extend the capabilities we have provided to suit your specific requirements. The client-side source code in the package is released under the Apache 2.0 license and the server-side source code under the MS-LPL license.  The Sync Framework 2.1 is fully supported by Microsoft and the mobile-enabling source code is yours to use, build upon, and support for the apps you create.









































Now some of you might be wondering why you would use a sync technology to move data rather than SOAP or REST web services.  The reason has to do with performance and bandwidth efficiency.  Using SOA, one would retrieve all the data needed to the device in order to see what has changed in SQL Server.  The same goes for uploading data.  Using the Sync Framework Toolkit, only the changes, or deltas, are transmitted over the air.  The boosts performance and reduces bandwidth usage which saves time and money in a world of congested mobile data networks with capped mobile data plans.  You also get a feature called batching, which breaks up the data sent over wireless networks into manageable pieces.  This not only prevents you from blowing out your limited bandwidth, but it also keeps you from using too much RAM memory both on the server and your memory-constrained mobile device.  When combined with conflict resolution and advanced filtering, I’m sold!

I think you’ll find the Sync Framework Toolkit to be an immensely valuable component of your MEAP solutions for the enterprise as well as the ones you build for consumers.

Keep Synching,

-Rob

Sharing my knowledge and helping others never stops, so connect with me on my blog at http://robtiffany.com , follow me on Twitter at https://twitter.com/RobTiffany and on LinkedIn at https://www.linkedin.com/in/robtiffany

Sign Up for my Newsletter and get a FREE Chapter of “Mobile Strategies for Business!”

[mc4wp_form id=”5975″]

Windows Phone 7 Line of Business App Dev :: Uploading Data back to Azure

Submarine

Looking back over the last 6 months of this series of articles, you’ve created wireless-efficient WCF REST + JSON Web Services in Azure to download data from SQL Azure tables to Windows Phone.

You’ve maintained in-memory collections of objects in your own local NoSQL object cache.  You’ve used LINQ to query those collections and bind results to various Silverlight UI elements.  You’ve even serialized those collections to Isolated Storage using memory-efficient JSON.  So what’s left to do?
Oh yeah, I guess you might want to know how to upload an object full to data back to a WCF Web Service in Azure.  In order to keep this article simple and to-the-point, I’m going to work with a basic Submarine object and show you how to fill it with data and upload it from a Windows Phone or Slate to a WCF REST + JSON Web Service.  Let’s take a look at this object:
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Runtime.Serialization;
namespace Models
{
[DataContract()]
public class Submarine
{
[DataMember()]
public int Id { get; set; }
[DataMember()]
public string Name { get; set; }
}
}
It includes just an integer data type called Id, and a string called Name.  As in previous articles before, its decorated with a [DataContract()] and two [DataMember()]s to allow .NET serialization to do its thing.  So the next thing we need to do is create and populate this Submarine object with data, serialize it as JSON, and send it on its way using WebClient.
Below is the method and its callback that accomplishes this:
using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using Microsoft.Phone.Controls;
using System.IO;
using System.Runtime.Serialization.Json;
using System.Text;
private void AddSubmarine()
{
Uri uri = new Uri(“
http://127.0.0.1:81/SubService.svc/AddSubmarine”);
Models.Submarine submarine = new Models.Submarine() { Id = 3, Name = “Seawolf” };
DataContractJsonSerializer ser = new DataContractJsonSerializer(typeof(Models.Submarine));
MemoryStream mem = new MemoryStream();
ser.WriteObject(mem, submarine);
string data = Encoding.UTF8.GetString(mem.ToArray(), 0, (int)mem.Length);
WebClient webClient = new WebClient();
webClient.UploadStringCompleted += new UploadStringCompletedEventHandler(webClient _UploadStringCompleted);
webClient.Headers[“Content-type”] = “application/json”;
webClient.Encoding = Encoding.UTF8;
webClient.UploadStringAsync(uri, “POST”, data);
}
void webClient_UploadStringCompleted(object sender, UploadStringCompletedEventArgs e)
{
var x = e.Result;
}
As you can see above, I point the URI at a WCF Service called SubService.svc/AddSubmarine.  How RESTful.  Next, I create an instance of the Submarine object, give it an Id of 3 and the Name Seawolf.  I then use the same DataContractJsonSerializer I’ve been using in all the other articles to serialize the Submarine object to a JSON representation.  Using the MemoryStream, I write the JSON to a stream and then artfully turn it into a string.  Last but not least, I instantiate a new WebClient object, create an event handler for a callback, and upload the stringified Submarine object to the WCF Service.
So where did I upload the Submarine object to?
It takes two to Mango, so let’s take a look.  For starters, it goes without saying that every WCF Service starts with an Interface.  This one is called ISubService.cs:
using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
namespace DataSync
{
[ServiceContract]
public interface ISubService
{
[OperationContract]
[WebInvoke(UriTemplate = “/AddSubmarine”, BodyStyle = WebMessageBodyStyle.Bare, RequestFormat = WebMessageFormat.Json, ResponseFormat = WebMessageFormat.Json, Method = “POST”)]
bool AddSubmarine(Models.Submarine sub);
}
}
Unlike previous articles where I had you download data with WebGet, this time I’m using WebInvoke to denote that a PUT, POST, or DELETE HTTP Verb is being used with our REST service.  The UriTemplate gives you the RESTful /AddSubmarine, and I added the Method = “POST” for good measure.  Keep in mind that you’ll need the exact same Submarine class on the server that you had on your Windows Phone to make all this work.
Let’s see what we get when we Implement this Interface:
using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
using Microsoft.WindowsAzure;
using Microsoft.WindowsAzure.Diagnostics;
using Microsoft.WindowsAzure.ServiceRuntime;
using Microsoft.WindowsAzure.StorageClient;
using System.Configuration;
using System.Xml.Serialization;
using System.IO;
namespace DataSync
{
public class SubService : ISubService
{
public SubService()
{



}



public bool AddSubmarine(Models.Submarine submarine)
{
try
{
if (submarine != null)
{
//Do something with your Deserialized .NET Submarine Object
//… = submarine.Id
//… = submarine.Name
return true;
}
else
{
return false;
}
}
catch
{
return false;
}
}
}
}
Here we end up with SubService.svc with the simple AddSubmarine method where you pass in a Submarine object as a parameter.  What you do with this object, I’ll leave to you.  Some might be tempted to INSERT it into SQL Azure.  I’d prefer that you drop it into an Azure Queue and have a Worker Role do the INSERTing later so you can stay loosely-coupled.  Just in case you need a refresher on a REST-based Web.config file, here’s one below:
<?xml version=”1.0″?>
<configuration>
<!–  To collect diagnostic traces, uncomment the section below.
To persist the traces to storage, update the DiagnosticsConnectionString setting with your storage credentials.
To avoid performance degradation, remember to disable tracing on production deployments.
<system.diagnostics>
<sharedListeners>
<add name=”AzureLocalStorage” type=”DataSync.AzureLocalStorageTraceListener, DataSync”/>
</sharedListeners>
<sources>
<source name=”System.ServiceModel” switchValue=”Verbose, ActivityTracing”>
<listeners>
<add name=”AzureLocalStorage”/>
</listeners>
</source>
<source name=”System.ServiceModel.MessageLogging” switchValue=”Verbose”>
<listeners>
<add name=”AzureLocalStorage”/>
</listeners>
</source>
</sources>
</system.diagnostics> –>
<system.diagnostics>
<trace>
<listeners>
<add type=”Microsoft.WindowsAzure.Diagnostics.DiagnosticMonitorTraceListener, Microsoft.WindowsAzure.Diagnostics, Version=1.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35″
name=”AzureDiagnostics”>
<filter type=”” />
</add>
</listeners>
</trace>
</system.diagnostics>
<system.web>
<compilation debug=”true” targetFramework=”4.0″ />
</system.web>
<!–Add Connection Strings–>
<connectionStrings>



</connectionStrings>



<system.serviceModel>
<behaviors>
<serviceBehaviors>
<behavior>
<!– To avoid disclosing metadata information, set the value below to false and remove the metadata endpoint above before deployment –>
<serviceMetadata httpGetEnabled=”true”/>
<!– To receive exception details in faults for debugging purposes, set the value below to true.  Set to false before deployment to avoid disclosing exception information –>
<serviceDebug includeExceptionDetailInFaults=”false”/>
</behavior>
</serviceBehaviors>
<!–Add REST Endpoint Behavior–>
<endpointBehaviors>
<behavior name=”REST”>
<webHttp />
</behavior>
</endpointBehaviors>
</behaviors>
<!–Add Service with webHttpBinding–>
<services>
<service name=”DataSync.SubService”>
<endpoint address=”” behaviorConfiguration=”REST” binding=”webHttpBinding”
contract=”DataSync.ISubService” />
</service>
</services>
<serviceHostingEnvironment aspNetCompatibilityEnabled=”true” multipleSiteBindingsEnabled=”true” />
<!–<serviceHostingEnvironment multipleSiteBindingsEnabled=”true” />–>
</system.serviceModel>
<system.webServer>
<modules runAllManagedModulesForAllRequests=”true”/>
</system.webServer>
</configuration>
This Web.Config gives you the webHttpBinding you’re looking for to do a REST service.  I even left you a spot to add your own database or Azure storage connection strings.
This article wraps up the Windows Phone 7 Line of Business App Dev series that I’ve been delivering to you since last September.  Who knew I would make fun of OData or have you create your own NoSQL database to run on your phone along the way?  I think I actually wrote the first article in this series from a hotel room in Nantes, France.
But have no fear, this isn’t the end.
In preparation for Tech Ed 2010 North America coming up on May 16th in Atlanta, I’ve been building the next-gen, super-fast, super-scalable Azure architecture designed for mobile devices roaming on wireless data networks.  I’ve spent the last decade building the world’s largest and most scalable mobile infrastructures for Microsoft’s wonderful global customers.  Now it’s time to make the jump from supporting enterprise-level scalability to the much bigger consumer-level scalability.
Yes, I’m talking millions of devices.
No, you won’t have to recreate Facebook’s servers, NoSQL, Memcache, or Hadoop infrastructure to make it happen.  I’m going to show you how to make it happen with Azure in just two weeks so I’m looking forward to seeing everyone in Atlanta in two weeks.
Keep coding,
Rob



Sharing my knowledge and helping others never stops, so connect with me on my blog at http://robtiffany.com , follow me on Twitter at https://twitter.com/RobTiffany and on LinkedIn at https://www.linkedin.com/in/robtiffany

Sign Up for my Newsletter and get a FREE Chapter of “Mobile Strategies for Business!”

[mc4wp_form id=”5975″]

What the new App Hub in Windows Phone Mango means for the Enterprise

Windows Phone 8 Tiles

If you attended MIX 11 or watched it on Channel 9, you might have seen Todd Brix’s session titled “Making Money with your Applications on Windows Phone.”

In this session, Todd talked about all the great things Windows Phone users and developers can expect with the new Marketplace and App Hub in the Mango timeframe.  I just want to focus on two items that will be of great significance to companies and organizations that are looking to build, and privately distribute Windows Phone apps to their employees, partners and customers.

Mango-Sizes

The Beta Distribution Service allows developers to distribute pre-certified apps to an access-controlled set of beta users.  How does it work?

  • The developer selects a list of up to 100 testers.  This number is subject to change based on feedback we get.
  • Developer sends an email to the designated testers that includes a private deeplink that points to the app in the Marketplace.  This allows only the testers to access and download the content since the app is not discoverable in the Marketplace via Search.
  • Only testers selected in the App Hub based on their Windows Live ID can test the app and provide feedback for 90 days.  Yes, the app will “time bomb” after 90 days.
  • The beta cannot be updated.  If you have multiple updates based on testing feedback, you must resubmit them like the first beta and send updated deeplinks to testers.
  • Testers won’t have to unlock their phone in order to beta test the apps.
  • Since there’s no certification requirement, there’s no latency between when you publish a beta app and when your private list of testers can access and download your content.
  • The cost of the beta app must be free.

Takeaway: No matter who you’re building apps and games for, the Beta Distribution Service will allow you to create higher quality content since you can now include beta testing in your development cycle.

The Private Distribution Service allows developers to privately distribute certified apps to a targeted group of users.  How does it work?

  • The app must be certified by Microsoft before distributing.
  • Developer sends an email to the targeted group of users that includes a private deeplink that points to the app in the Marketplace.  Keep in mind that the app is not discoverable in the Marketplace via Search by the general public.
  • A private app can be updated and pushed to the targeted group of users.
  • There are no limits on the number of users or the duration of time that those users can use the app.  This works just like the public Marketplace rules we have today.
  • There is no access enforcement based list of targeted users.  In other words, if an employee at a company shares the deeplink with a fellow coworker, that new person can download the content.  By including appropriate authentication and authorization mechanisms in published apps, you can prevent unwanted users from being able to do anything with the app.
  • Private apps can be free or paid
  • These private apps can be published to the public Marketplace at any time.

Takeaway: This enables the private distribution of released apps to a small or large community of users.  You could use this as an extension of your application beta testing cycle if you want to send out a release candidate to a broader group of testers than the 100 allowed via the Beta Distribution Service.  It’s also a great way to privately send your app to magazines, blogs, and other media channels to be publicly reviewed.

What does this mean for the enterprise?  Those of you who have worked with or administered enterprise software distribution systems, will quickly recognize that the Private Distribution Service doesn’t allow an administrator to push out and restrict software usage to specific organizational groups or roles.  It also doesn’t allow an administrator to uninstall specific apps  from the phones of specific users or groups either.  Lastly, it doesn’t map to an enterprise LDAP service like Active Directory.  You’re probably thinking System Center and this is definitely not that.

That being said, the Private Distribution Service overcomes the single-biggest blocker that company executives have expressed to me as a reason why they might not create and publish apps for Windows Phone.  They don’t want their private corporate apps publicly viewable and/or accessible by the broad general public searching for apps in the public Marketplace.  When they build B2C apps to reach their own customers, this is no problem, but when they build line-of-business apps meant just for their employees or partners, they don’t want these apps to be discoverable.

This means IT departments will be able to build undiscoverable Windows Phone apps for private internal use by the users they designate.  Some of the administrative issues around software distribution can be alleviated by having a corporate IT authority publish Beta and Private apps via a single Windows Live ID.  That publishing administrator can then map users, groups or roles to existing or new Windows Live IDs of employees that need to use the app.  That administrator will be able maintain the application lifecycle through beta testing, publishing, updating and decommissioning.  As I alluded to earlier in the post, once a designated employee has access to the app, her ability to run and access data and various parts of the app can be controlled by on-premise or cloud-based authentication and authorization mechanisms.  This includes things like passing Domain credentials or using claims-based auth.  Your data-in-transit is protected by SSL and your data-at-rest in Isolated Storage is protected by AES encryption.

We’ll be seeing a new Windows Phone, App Hub, and Marketplace before the end of 2011.  Its line-of-business credentials include encryption, private software distribution, server auth mechanisms, the ability to call SOAP and REST web services, socket support, multitasking, background agents, and a local SQL database just to name a few.

You’ll soon be looking at the most enterprise-ready smartphone on the market.

-Rob

Sharing my knowledge and helping others never stops, so connect with me on my blog at http://robtiffany.com , follow me on Twitter at https://twitter.com/RobTiffany and on LinkedIn at https://www.linkedin.com/in/robtiffany

Sign Up for my Newsletter and get a FREE Chapter of “Mobile Strategies for Business!”

[mc4wp_form id=”5975″]

The Important User Experience (UX) You Can’t See

Cellular Tower

Whenever I hear the term, “UX,” I immediately think of graphic designers, artists and folks who focus on making the UI of your application beautiful.

Nine times out of ten, this is the appropriate connection to make.  Great UX folks at Microsoft came together to make Windows Phone 7 the most visually-appealing smartphone on the market and that’s a good thing.  Lucky for me, great UX folks come to my rescue all the time because while I can build functional and usable client applications that solve users problems, my stuff isn’t that pretty.  Gotta love Expression Blend and the people who can use it to transform your app!

There’s lots of folks out there that think they don’t have an actual connection to the end user because they develop on-premise and cloud server APIs.  You know who I’m talking about.  Server developers who are building Web Services using WCF to expose functionality to be consumed by clients.  Web developers that are creating dynamic ASP.NET web pages that make AJAX requests.  Well, I’m one of those people too.

Just because you don’t build client UI’s that people can see and touch, doesn’t mean you don’t have an important impact on UX.

Once a user gets past the “skin-deep” beauty of the UI you typically think of, they’re often more concerned about accomplishing the task that the mobile app was designed for.  If a user taps on a button and has to wait over a minute to retrieve and display the data they’re requesting, it’s fair to say that they just had a poor user experience.

Cellular Tower

In our new world where wirelessly-connected smartphones and tablets rule the day, a number of factors that you may not have thought of, come into play that impact user experience.  After the user clicks the button, and before data is retrieved, quite a few steps are taken through a very long path:

  1. Your Request is transmitted from the device to the nearest cell tower while competing for bandwidth with hundreds or thousands of other nearby mobile devices all doing the same thing.  Oh, and those 3G and psuedo-4G speeds you read about are only achieved in perfect conditions with a limited number of wireless devices connected at any given time.
  2. Your Request travels down the tower to the base station.
  3. Your Request travels from base station to the mobile operator’s backhaul network where it competes with millions of other requests for bandwidth across fiber and other types of circuits.  Keep in mind that despite providing fast wireless speeds in perfect conditions, the amount of bandwidth in the various mobile operators backhaul networks varies widely.
  4. Your Request jumps on to the public Internet and starts hopping through routers.
  5. Your Request hits the outer firewall of the Domain you’re trying to reach.
  6. Your Request might hit a reverse proxy.
  7. Your Request might go through a back firewall as it leaves the DMZ to enter a corporate network.
  8. Your Request finally gets to the intended server, and depending on the amount of traffic it’s experiencing, it will wait in an invisible queue created by the server operating system until it gets processed.
  9. Your Response travels back through all those same hoops to get back to your wireless, mobile device.

Wow, I’m already tired just thinking about that!

So it should be clear that despite the great convenience provided by wireless data networks, there are a lot of hoops built into the system that work against you to diminish the user experience.  Doctors take an oath to “do no harm,” and I think server developers should take that oath to heart.  You have a lot of options to consider to make this wireless journey as fast as possible in order to put a smile on the user’s face.  Besides fast servers, lots of processor cores, fast SANs, caching, queuing, scaling out, data sharding, using the best SQL query plan, using faster code algorithms and such, I want you to optimize the stuff that’s actually going over the wireless network.  I want to make sure you “do no harm,” and that means not using fat, slow transports and wire protocols to move your data between devices and servers.

If you’ve been to my Tech Ed sessions or read past blog posts from me, you know that speed and efficiency mean a lot to me.  In the past, I’ve demonstrated 4 different ways to return a list of 8 delivery drivers from SQL Azure.  Depending on the choice the server developer made, the resulting user experience could be bad or good.

  1. Worst:  Using OData with all it’s helpful metadata, the list of drivers used 8.54 kb of data.
  2. Not as bad:  Using SOAP + DataSets, the list of drivers used 3 kb of data.
  3. Much better:  Using REST + XML, the list shrank to 1.24 kb of data.
  4. Best:  Using REST + JSON, the list dropped all the way down to 639 bytes.

Each one of the examples above returned the data my user was asking for, but they diverged in how much bandwidth they ate along the way.  Guess what happens if you take advantage of the built-in gzip + deflate compression capabilities found in IIS 7?  Through the use of the URL Rewrite Module, tweaks to your web.config file, and specifying an Accept-Encoding header like Nick Randolph figured out, you can shrink the 639 bytes to a fraction of that size.  Now we’re talking great user experience here!

Now you’re on the right track with efficient, compressed, REST + JSON Web Services, so let’s move on to the mobile web.

Those giant, flashy websites you’ve been building since the 90’s aren’t going to cut it on mobile devices.  It doesn’t matter that your iPhone or Windows Phone 7 browser can render the Wall Street Journal in all its glory.  It’s not a good user experience.  Have you ever heard the phrase, “just because you can do something, doesn’t mean you should do that thing?”  Just because my mobile browser can flawlessly render the New York Times, doesn’t mean my user is interested in waiting till the next ice age of it to download and fully render.  Oh, and then you have to pinch and zoom to actually find anything that your eyes can read.  Do your users a favor and view my Tech Ed Europe session on the mobile web and download the mobile web best practices cards to build web sites for small screens and slow wireless networks with lots of latency.

Mobile web sites should be displayed in a single column, heavy on text, light on pictures and graphics, and weigh-in at under 20 kb in size.  Yes, I just said under 20 kb.  Just in case you’ve heard otherwise, the secret to a successful mobile web site is not HTML 5.  Remember, the mobile web is all about reaching as many users as possible with your site or web application.  I’ll have more to say about this in my forthcoming book on the subject.

So what’s the big takeaway here?

Cloud and on-premise server developers have a big role to play in UX even if you can’t always see what they’re doing!

Keep coding,

-Rob

Sharing my knowledge and helping others never stops, so connect with me on my blog at http://robtiffany.com , follow me on Twitter at https://twitter.com/RobTiffany and on LinkedIn at https://www.linkedin.com/in/robtiffany

Sign Up for my Newsletter and get a FREE Chapter of “Mobile Strategies for Business!”

[mc4wp_form id=”5975″]
