Whether you’re targeting Mobile Line of Business apps for the Enterprise or B2C apps for consumers, ensuring that sensitive data is encrypted is a must. These days, I can’t have a serious discussion with a CIO unless I can assure her that my mobile device can protect data-in-transit and data-at-rest. You already know that Windows Phone 7 secures data-in-transit via SSL whether you’re using Internet Explorer or calling a Web Service from a Silverlight app. What you may not know is how it covers the other bases. A quick look over at http://msdn.microsoft.com/en-us/library/ff402533(v=VS.92).aspx lists the following cryptographic algorithms supported by Windows Phone OS 7.0:
- AES
- HMACSHA1
- HMACSHA256
- Rfc2898DeriveBytes
- SHA1
- SHA256
I thought I’d take some of these algorithms for a spin by building a sample app using Microsoft Visual Studio 2010 Express for Windows Phone. All I really wanted to do is use the Advanced Encryption Standard (AES) for symmetric key encryption to encrypt and decrypt some data so I could save it to Isolated Storage. Doing this would definitely check the security checkboxes of Microsoft’s customers and ISVs.

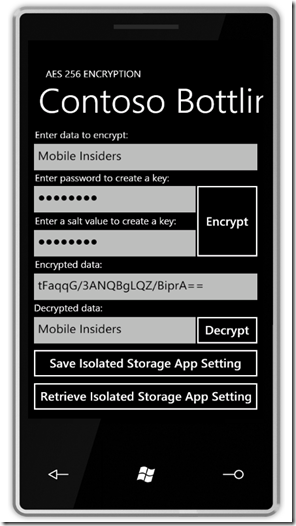

Above are screenshots of the simple app I created. A TextBox is used to enter the data to be encrypted by AES. Below that, a PasswordBox control is used to enter a password that works in conjunction with Rfc2898DeriveBytes and HMACSHA1 + a Salt value to create a key. Keep in mind that you must enter more than 8 characters to create a valid Salt value. I don’t necessarily expect you to understand PBKDF2 Password-Based Cryptography. Tapping the Encrypt button calls the Encrypt() method which uses Silverlight’s AesManaged class to create a Key and an Initialization Vector (IV) to perform the crypto magic and display the resulting Base64 encrypted data in the Encrypted data TextBox. Tapping the Decrypt button does the reverse by calling the Decrypt() method to unscramble the data and display the resulting data in the Decrypted data TextBox.

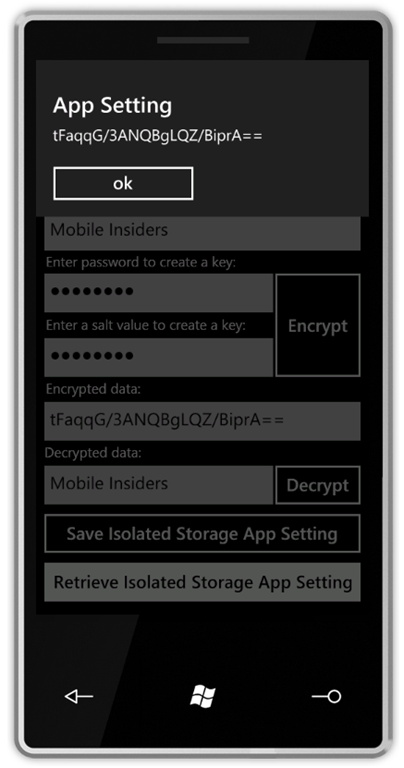

I also threw some buttons on there to save the newly encrypted data to Isolated Storage as an ApplicationSetting. As shown in the screenshot above, tapping the Save to Isolated Storage button will save the encrypted data locally. The best way to test the Retreive from Isolated Storage button is to first close the app, then restart it, and then tap the button. It will place the saved information in the Encrypted data TextBox. From there, just enter the password and salt you used before and the text you’re looking for will appear in the Decrypted data TextBox.
Let’s take a look at some code.
You’ll need to include the following using statements to get started:
using System.IO;
using System.IO.IsolatedStorage;
using System.Security.Cryptography;
using System.Text;
The Encrypt() method below takes the data you want to encrypt as well as a password and salt value as arguments. It uses the AesManaged object with the default values of a 256-bit key size and 128-bit block size. With the help of your supplied password, the encryption key is created using the Rfc2898DeriveBytes object with a dash of Salt. When creating the pseudo-random number needed to derive a key, the default number of iterations specified by the Password-Based Cryptography Specification (RFC 2898) is 1,000. On the advice of some of our top security experts, I bumped that value up to 10,000 to make this harder to crack. The next thing to note is both the AES key and IV have their values assigned from the Rfc289DeriveBytes object containing the base key. Keep in mind that you don’t want to use a static IV and that’s why it’s good to have it derived from your unique password, salt, plus 10,000 iterations to create pseudo-randomness. One other thing to note is that the biggest performance hit you’ll experience in running this code comes from when you call the GetBytes(int) method of the Rfc2898DeriveBytes object which initializes a new instance of HMAC each time. If you need to encrypt multiple strings or other types of data, you should pull the Rfc2898DeriveBytes objects out of the Encrypt method and just pass in a pre-created Key and IV so that each call doesn’t have to perform this expensive initialization over and over again. Finally, the MemoryStream and CryptoStream objects work with the AesManaged object to convert your supplied data into an encrypted array of Bytes. I convert that array into a Base64 string that you can display on the screen, cache in memory, or save to Isolated Storage.
private void btnEncrypt_Click(object sender, RoutedEventArgs e)
{
try
{
txtEncryptedData.Text = Encrypt(txtDataToEncrypt.Text, txtPassword.Password, txtSalt.Password);
}
catch (CryptographicException cryptEx)
{
MessageBox.Show(cryptEx.Message, "Encryption Error", MessageBoxButton.OK);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message, "General Error", MessageBoxButton.OK);
}
}
public string Encrypt(string dataToEncrypt, string password, string salt)
{
AesManaged aes = null;
MemoryStream memoryStream = null;
CryptoStream cryptoStream = null;
try
{
//Generate a Key based on a Password and HMACSHA1 pseudo-random number generator
//Salt must be at least 8 bytes long
//Use an iteration count of at least 1000
Rfc2898DeriveBytes rfc2898 = new Rfc2898DeriveBytes(password, Encoding.UTF8.GetBytes(salt), 10000);
//Create AES algorithm
aes = new AesManaged();
//Key derived from byte array with 32 pseudo-random key bytes
aes.Key = rfc2898.GetBytes(32);
//IV derived from byte array with 16 pseudo-random key bytes
aes.IV = rfc2898.GetBytes(16);
//Create Memory and Crypto Streams
memoryStream = new MemoryStream();
cryptoStream = new CryptoStream(memoryStream, aes.CreateEncryptor(), CryptoStreamMode.Write);
//Encrypt Data
byte[] data = Encoding.UTF8.GetBytes(dataToEncrypt);
cryptoStream.Write(data, 0, data.Length);
cryptoStream.FlushFinalBlock();
//Return Base 64 String
return Convert.ToBase64String(memoryStream.ToArray());
}
finally
{
if (cryptoStream != null)
cryptoStream.Close();
if (memoryStream != null)
memoryStream.Close();
if (aes != null)
aes.Clear();
}
}
As you can see below, the Decrypt() method looks remarkably similar to the Encrypt() method except that it does just the opposite. It accepts your AES-encrypted Base64 data plus a password and salt value as parameters to the method. The big difference is in the CryptoStream where you have the AesManaged object call CreateDecryptor() instead of CreateEncryptor(). This does the trick and then I convert the unencrypted Byte array into a string.
private void btnDecrypt_Click(object sender, RoutedEventArgs e)
{
try
{
txtDecryptedData.Text = "";
txtDecryptedData.Text = Decrypt(txtEncryptedData.Text, txtPassword.Password, txtSalt.Password);
}
catch (CryptographicException cryptEx)
{
MessageBox.Show(cryptEx.Message, "Decryption Error", MessageBoxButton.OK);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message, "General Error", MessageBoxButton.OK);
}
}
public string Decrypt(string dataToDecrypt, string password, string salt)
{
AesManaged aes = null;
MemoryStream memoryStream = null;
try
{
//Generate a Key based on a Password and HMACSHA1 pseudo-random number generator
//Salt must be at least 8 bytes long
//Use an iteration count of at least 1000
Rfc2898DeriveBytes rfc2898 = new Rfc2898DeriveBytes(password, Encoding.UTF8.GetBytes(salt), 10000);
//Create AES algorithm
aes = new AesManaged();
//Key derived from byte array with 32 pseudo-random key bytes
aes.Key = rfc2898.GetBytes(32);
//IV derived from byte array with 16 pseudo-random key bytes
aes.IV = rfc2898.GetBytes(16);
//Create Memory and Crypto Streams
memoryStream = new MemoryStream();
CryptoStream cryptoStream = new CryptoStream(memoryStream, aes.CreateDecryptor(), CryptoStreamMode.Write);
//Decrypt Data
byte[] data = Convert.FromBase64String(dataToDecrypt);
cryptoStream.Write(data, 0, data.Length);
cryptoStream.FlushFinalBlock();
//Return Decrypted String
byte[] decryptBytes = memoryStream.ToArray();
//Dispose
if (cryptoStream != null)
cryptoStream.Dispose();
//Retval
return Encoding.UTF8.GetString(decryptBytes, 0, decryptBytes.Length);
}
finally
{
if (memoryStream != null)
memoryStream.Dispose();
if (aes != null)
aes.Clear();
}
}
Please keep a few things in mind when encrypting data on the Windows Phone 7 platform. The OS Does Not include framework support for storing your passwords and salt values securely nor does it come with any kind of built-in key management. This means the only way to ensure your encrypted data is actually secure is to never store your password, salt value or keys on the phone. As shown in my example, I require you to enter a password and a salt value each time you want to encrypt or decrypt data. I do not attempt to save those cleartext values anywhere in the system because there is no secure way to store them. One other thing to think about is that the cleartext password and salt value you entered on the screen can remain in memory at least until the next garbage collection. If you see an app in the Windows Phone Marketplace that allows you to cache your credentials or keys locally for convenience, be aware that these are Not Secure solutions because everything a hacker needs to get at your data is right there in the code or in Isolated Storage. The only place to store your password and salt is in your head. It’s not that big a deal. Your bank’s website makes you enter your credentials each time to ensure the security of your financial data, so this is something you’re already accustomed to.
Beyond the two Crypto methods above, I created a pair of methods to save and load your encrypted ApplicationSettings to Isolated Storage as shown below:
private void btnSave_Click(object sender, RoutedEventArgs e)
{
try
{
SaveState("EncryptedValue", txtEncryptedData.Text);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message, "Save Error", MessageBoxButton.OK);
}
}
public void SaveState(string Name, string Value)
{
if (Value != "")
{
if (IsolatedStorageSettings.ApplicationSettings.Contains(Name))
{
IsolatedStorageSettings.ApplicationSettings[Name] = Value;
}
else
{
IsolatedStorageSettings.ApplicationSettings.Add(Name, Value);
}
}
}
private void btnRetreive_Click(object sender, RoutedEventArgs e)
{
try
{
txtEncryptedData.Text = LoadState("EncryptedValue");
}
catch (Exception ex)
{
MessageBox.Show(ex.Message, "Load Error", MessageBoxButton.OK);
}
}
public string LoadState(string Name)
{
if (IsolatedStorageSettings.ApplicationSettings.Contains(Name))
{
return IsolatedStorageSettings.ApplicationSettings[Name].ToString();
}
else
{
return "";
}
}
As you can see from the code samples above, encrypting the sensitive data you use in your Windows Phone 7 apps is completely within your reach. This is just one of many managed crypto examples to give you an idea on how to get started. Many more are waiting for you on MSDN. When you combine this with the following security elements:
- Apps are tested, digitally signed and securely delivered via the Windows Phone Marketplace
- No side-loading of potentially insecure apps
- SSL for data in transit
- Managed apps run inside secure sandbox
- Apps have private, inaccessible Isolated Storage
- Exchange Policies including PIN lock enforcement + Remote wipe
It’s clear that Windows Phone 7 has an excellent app security story that’s not only good for consumers, but also means that this mobile app platform is prime-time ready for the Secure Enterprise.
Keep coding,
Rob
)
